Technical Data

technical data

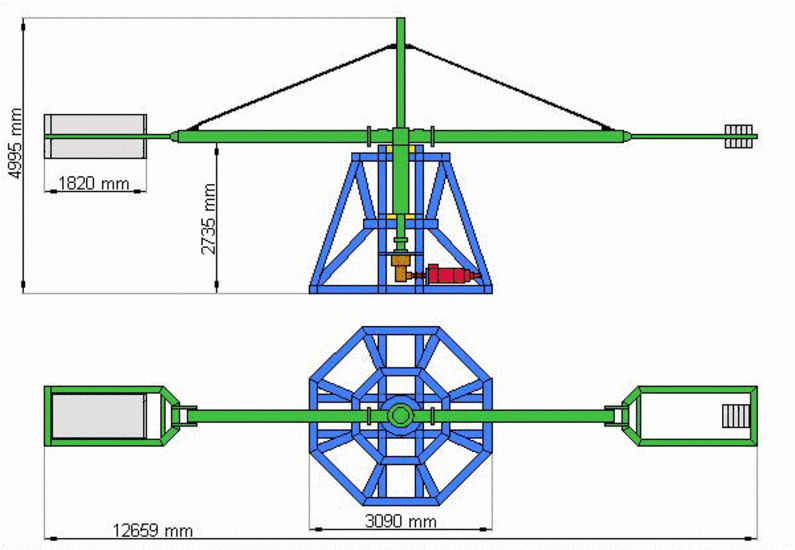

Components

base frame of the centrifuge

rotor shaft with arms and struts

main engine

angular gear

main bearing of the rotor shaft

capsule and counter weight

technical data

	SI	US
centripetal acceleration:	up to 30 g	up to 30 g
experiment volume:	up to ≈11 m³	up to ≈388,52 ft³
average rotational radius:	5,42 m	17 ft 9 inch
revolutions per minute:	0 - 67 min^{- 1}	0 - 67 min^{- 1}
max. tangential velocity:	45,3 ^m/_s	8917 ^ft/_min
Platform for sensitive equipment (2x):	1000x800x1500mm	39.37x31.49x59.05inch
Entrance to the centrifuge chamber:	2700x2500x1200 mm	108.3x98.4x47.2inch
Larger objects shall be assembled in the centrifuge chamber.

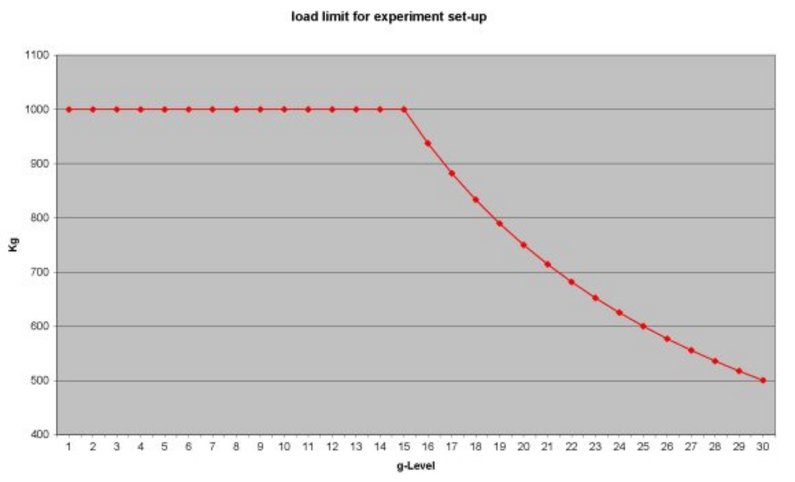

experiment weight

For g-levels less than 15g₀ the overall load maximum is 1000kg. Between 15g₀ and 30g₀ the overall load maximum is limited according to the actual g-level.
